Ensure the efficiency and longevity of your piping and ductwork systems with high-quality duct pipes and fittings. Our selection of products can be used over and underground and for various purposes.

hdpe&pvc pipe-ghana

BS3506

Download Catalogue

Our PVC duct pipes and duct pipe fittings pass quality testing and meet international standards.

  • PVC-U (Un-plasticized Polyvinyl Chloride)
  • Usage – Plastic piping system for cable ducts
  • Size Range: 2’’ to 12’’Dia
  • Available Classes:

– Class – B

– Class-C

– Class-O

hdpe-pipe

NEMA TC 2

Download Catalogue

Manufactured as per the specification from National Electrical Manufacturers Association (USA).

  • Usage – Electrical Polyvinyl Chloride (PVC) tubing and conduit for above and underground application.
  • Size Range: 2’’ to 8’’
  • Available Classes:

– EPT: Electrical PVC tubing designed to be encased in concrete when installed, used in trenches or encased in buildings, walls, floors or ceilings.

– EPC 40: Electrical PVC conduit designed for normal-duty applications above the ground, also used for all concrete encased applications or direct burial.

– EPC 80: Electrical PVC conduit designed for heavy-duty(areas of physical damage) applications above the ground, also used for all concrete encased applications or direct burial.

  • Type: Solvent Weld
hdpe and PVC-pipe-ghana

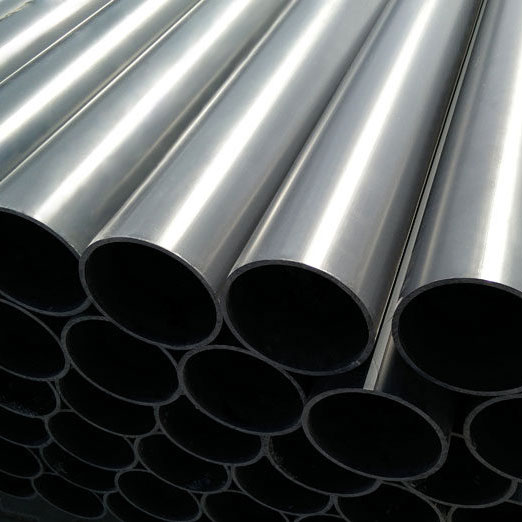

NEMA TC-6 & 8

Download Catalogue

Manufactured as per the specification from National Electrical Manufacturers Association (USA).

  • Usage: Polyvinyl Chloride (PVC) duct used in installation at underground areas for communications, electrical wires, and cabling.
  • Size Range: 2’’ to 8’’
  • Available Classes:

– EB-20

– EB-35

– DB-60

– DB-100

– DB-120

  • Type: Solvent Weld
hdpe&pvc pipe-ghana

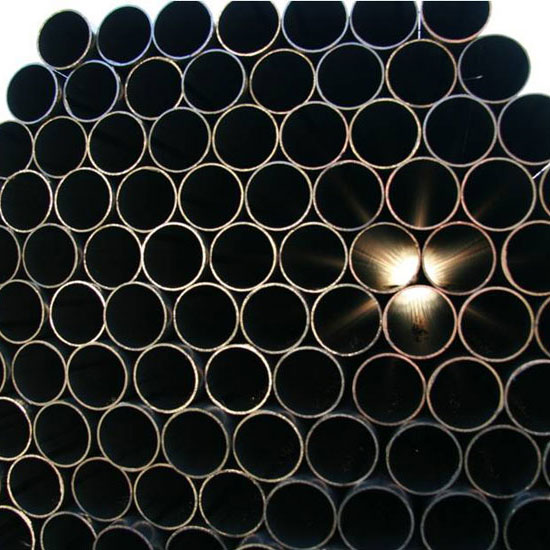

ASTMF 512

Download Catalogue

PVC duct pipe and fittings that pass strict inspection and testing.

  • Usage: Polyvinyl Chloride (PVC) conduit for underground application
  • Size Range: 2’’ to 6’’
  • Classes: EB-20, EB-35, DB-60, DB-100, DB-120
  • Type: Solvent Weld
hdpe&pvc pipe-ghana

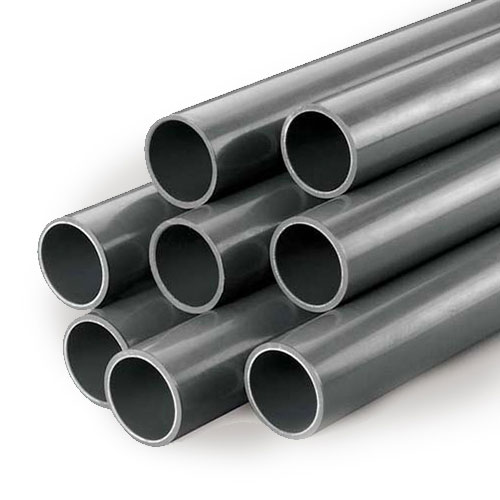

BS6099

Download Catalogue
  • Duct pipes that adhere to International Standards BS 6099.
  • Usage: Electrical installation
  • Size Range: 20mm to 50mm
  • Available in light, medium, and heavy-duty conduits
  • Type: Solvent Weld
hdpe&pvc pipe-ghana

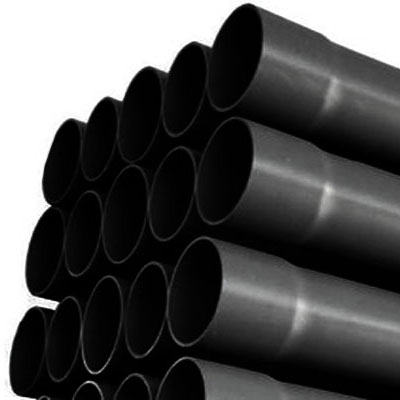

DIN8061

Download Catalogue
  • Duct pipes that adhere to International Standards DIN 8061/62.
  • Usage: Electrical Cabling
  • Size Range: 75mm to 400mm
  • Classes: PN4 & PN6
  • Type: Solvent Weld
hdpe&pvc pipe-ghana

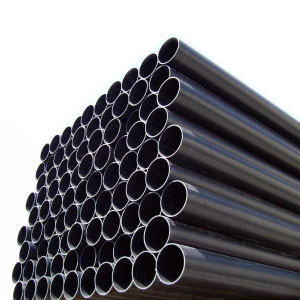

ISO161/1

Download Catalogue
  • Duct pipes that adhere to International Standards ISO 161/1.
  • Usage: Electrical Cabling
  • Size Range: 75mm to 400mm
  • Classes: PN4 & PN6
  • Type: Solvent Weld

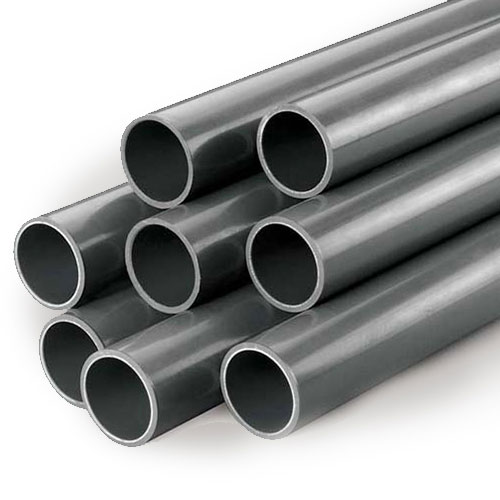

Service Duct

Service Duct

Download Catalogue
  • Manufactured with Polyvinyl Chloride (PVC).
  • Usage: Mainly used for non-pressure ducting application
  • Size Range: 20mm to 200mm
  • Available in light, medium, and heavy-duty classes.
  • Type : Solvent Weld

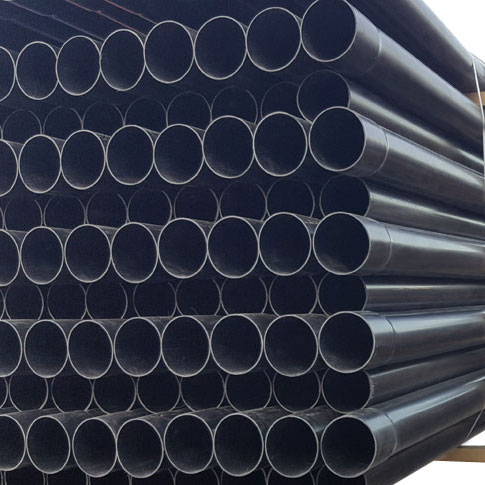

Etisalat/DU Specs

PVC Duct Pipes and Fittings Adhering to Etisalat / DU Specs

Download Catalogue
  • Manufactured with Polyvinyl Chloride (PVC) as per Etisalat /DU specs MS-7A.
  • Usage: Mainly used for non-pressure ducting application
  • Size Range: D54 & D56
  • Duct pipe, bends, coupler, end cap, and other accessories available.
  • Type: Solvent Weld.

Ensure the efficiency and longevity of your piping and ductwork systems with high-quality duct pipes and fittings. Our selection of products can be used over and underground and for various purposes.
