High-quality pipe accessories are essential for any type of piping system to function properly and withstand the tests of time and wear and tear. Our lineup of PVC pipe fittings are designed to meet this requirement and more.

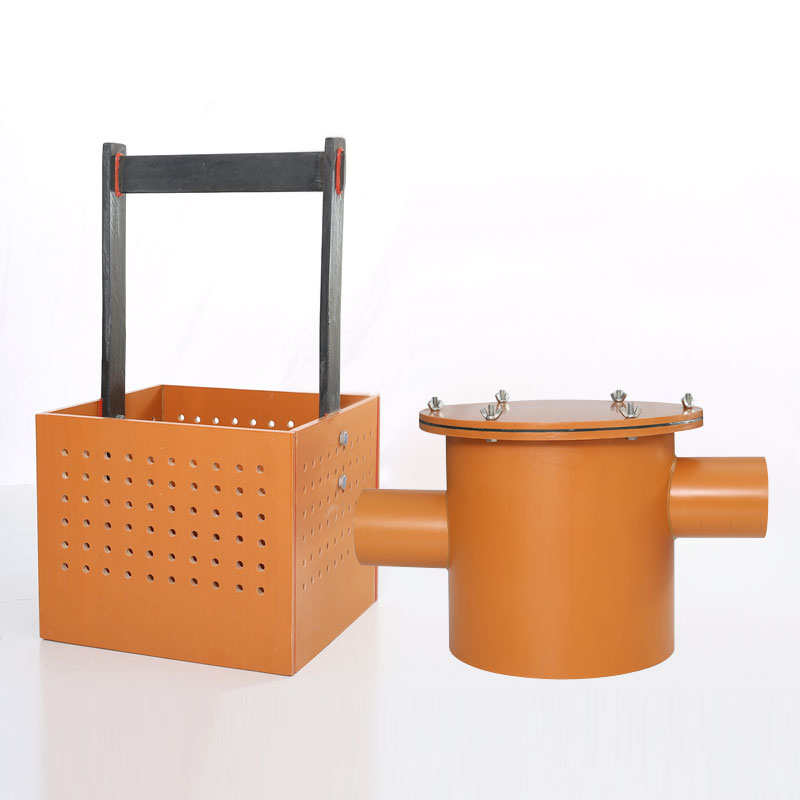

PVC-Fabricated-Plumbing-Products

PVC Fabricated Plumbing Products

Download Catalogue
  • These products are manufactured in PVC-U
  • Usage – Drainage& Plumbing Application

Product available in Grease Trap (Type A, Type-B, Type-C)  , Puddle Flange, Sand Trap Buckets, Catch Basin, Perforated Buckets, Dry manholes, Gully Traps, Couplers, Reducers, P-Trap, End Caps, etc.

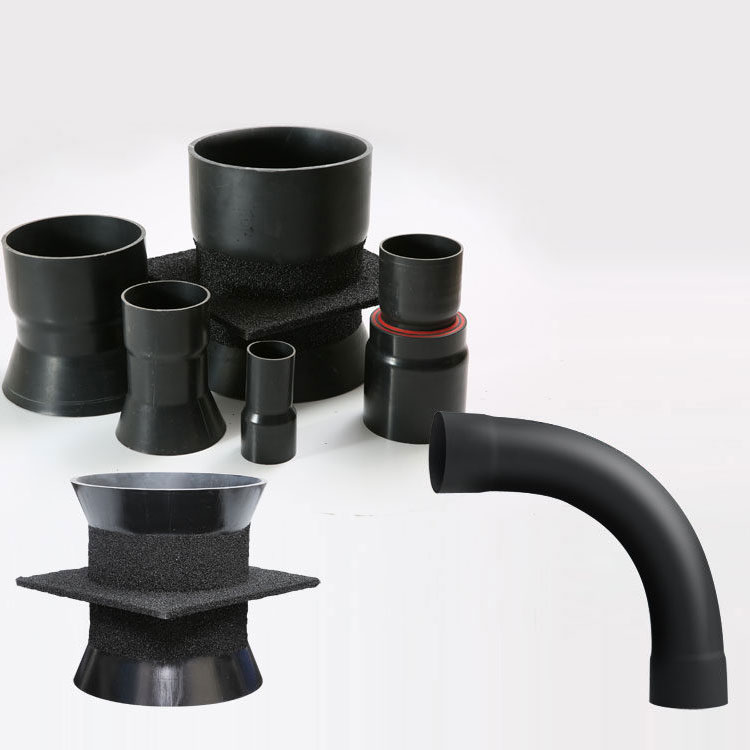

PVC Duct Accessories

PVC Duct Accessories

Download Catalogue
  • These products are manufactured in PVC.
  • Usage Non – Pressure Cable Ducting Application.

Products available in Bell Mouth, Coupler, Bends, End Caps, Reducers, Puddle Flanges, Sand Blasted Bell Mouth, Sand Blasted Puddle Flange, Street Light Bends, Long Radius Bends, Double Bell Coupler.

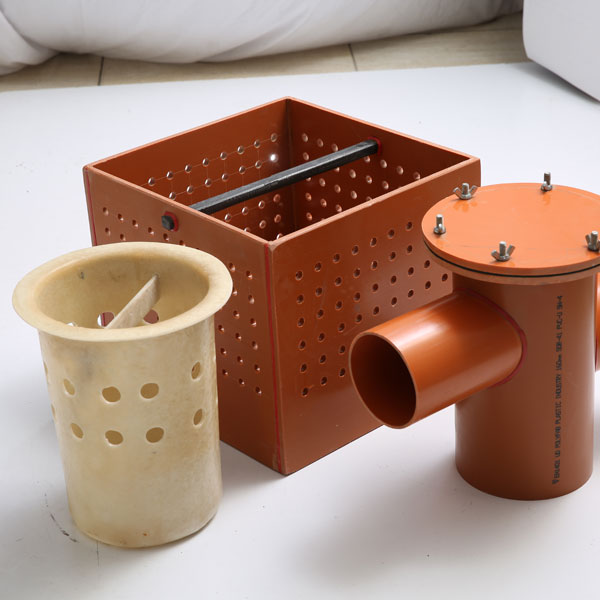

Custom Fabrication

Custom Fabrication

Download Catalogue

The integrated design and fabrication of building components are becoming more prevalent in architecture. Offsite fabrications of building components are becoming increasingly common. They are driving the need to apply advances processes that have traditionally served the construction industry.

  • Usage – Custom fabrication as per site requirement

Pipe fittings are crucial components of plumbing, drainage, cooling and heating, communication, and electrical systems. By choosing the best HDPE pipe fittings, you can expect complete functionality and reliability from your fixtures for years.

Buttfusion Fittings

Buttfusion Fittings

Download Catalogue
  • Adhere to International Standards EN12201
  • Usage – Polyethylene (PE) fittings for Pressure & Electrical Ducting Application
  • Size Range: 20 to 315mm
  • Pressure Rating: PN10 & PN16
  • Standard Dimensional Ratio: SDR17 & SDR11
  • Type: Butt fusion Weld
Electro Fusion

Electro Fusion

Download Catalogue
  • Adhere to International Standards EN12201
  • Usage- Polyethylene (PE) fittings for Pressure & Electrical Ducting Application
  • Size Range: 20 to 315mm
  • Pressure Rating: PN16
  • Standard Dimensional Ratio: SDR11
  • Type: Electro fusion Weld
Welded Fabricated Fittings

Welded Fabricated Fittings

Download Catalogue
  • Adhere to International Standards EN12201
  • Usage – Polyethylene (PE) fittings for Pressure & Electrical Ducting Application
  • Size Range : 20 to 315mm
  • Pressure Rating : PN20, PN 16, PN10
  • Standard Dimensional Ratio: SDR9,SDR11,SDR17
  • Type: Butt fusion Weld
Drainage Fittings

Drainage Fittings

Download Catalogue

These fittings are manufactured in HDPE as per international standard requirements:

  • 1. Application : Drainage Application
  • 2. Size Range : 50 to 315MM

Polyfab’s HDPE soil pipe and waste pipe fittings are ideal for water supply applications. See our list of products below

hdpe&pvc pipe-ghana

ISO 4427

Download Catalogue
  • Pipes for Potable Water Application & Irrigation
  • Adhere to International Standards ISO 4427
  • Usage- Polyethylene (PE) pipes for water supply
  • Size Range : 50mm to 315mm
  • Pressure Rating :PN10,PN16,PN20
  • Standard Dimensional Ratio: SDR17,SDR11, SDR09
  • Available in 6Meter, 12Meter & Rolls with blue stripe
hdpe&pvc pipe-ghana

EN13244

Download Catalogue
  • Adhere to International Standards EN 13244.
  • Usage – Plastic piping systems for buried and above the ground pressure systems for general purposes, drainage and sewerage – polyethylene (pe) – part 5: fitness for purpose of the system
  • Size Range : 50mm to 315mm
  • Pressure Rating :PN20,PN16,PN10,PN6
  • Standard Dimensional Ratio: SDR9, SDR11, SDR17, SDR26
  • Available in 6Meter, 12Meter & Rolls
hdpe&pvc pipe-ghana

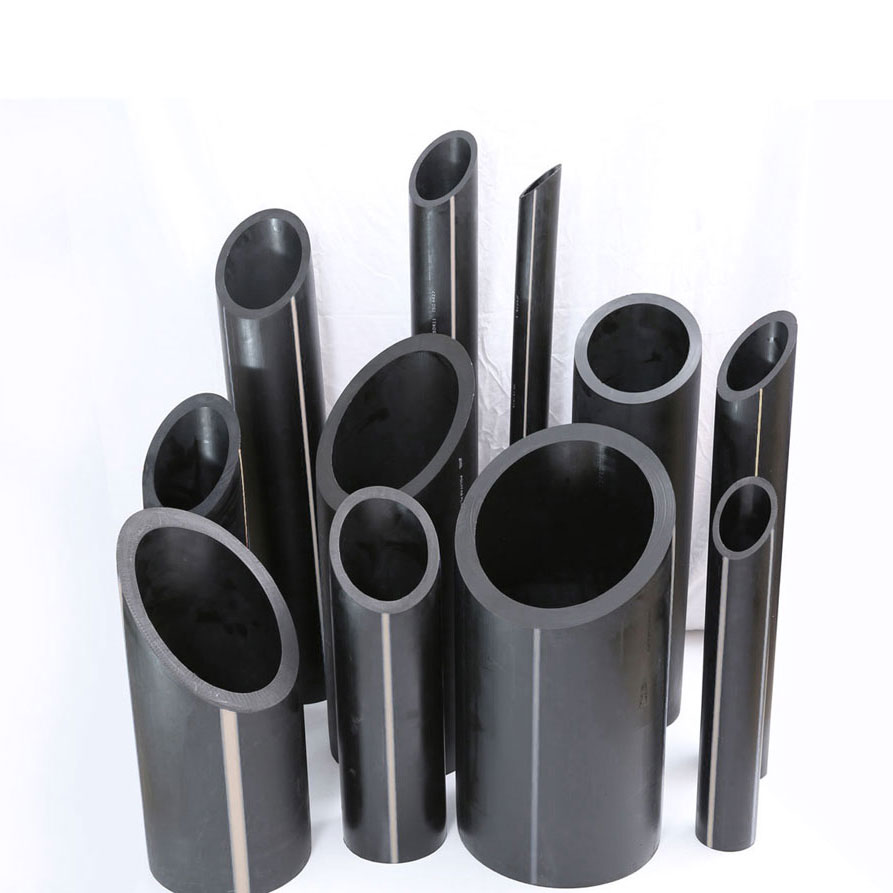

EN1519

Download Catalogue

Polyfab Pipes are produced with high density Polyethylene, which adhere to International Standards EN 1519

  • Color: Black in color or Black with white cream stripe
  • Soil & Waste Pipes: Pipes with S16 series are marked with “B” & intended to be used inside the building or else outside the building but attached to one of the walls
  • Under Ground Pipes: Pipe with S 12.5 Series are marked with “B” are intended to be used above & buried in ground within the building structure
  • Usage – Polyethylene (PE) pipes for
  • Size Range : 50mm to 315mm
  • Available in 4 Meter & 6 Meter with Orange Stripes
hdpe&pvc pipe-ghana

ISO 4427

Download Catalogue

Polyfab manufactures FM Approved PE Pipes & Fittings adhering to ISO 4427 standards with Pressure rating SDR9 & SDR11. Our range of FM Approved fittings includes Elbow, TEE etc. As per EN12201 Standards under stringent quality control. Our pipes & fittings are tested at each stage of production to comply with quality & standards.

  • Usage- Polyethylene (PE) pipes for Fire fighting Application
  • Size Range: 50mm to 315mm
  • Pressure Rating :PN16,PN20
  • Standard Dimensional Ratio: SDR11, SDR9
  • Available in 6Meter, 12Meter & Rolls with red stripe
hdpe&pvc pipe-ghana

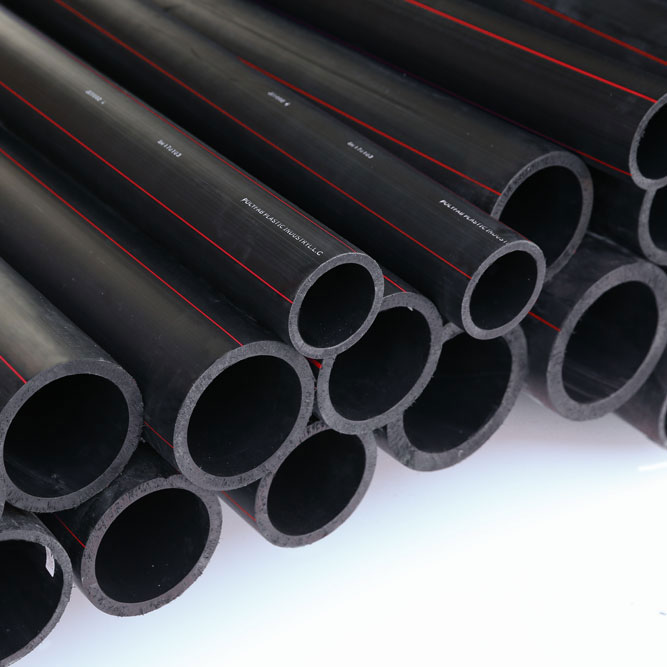

AWWA 906

Download Catalogue
  • Adhere to International Standards AWWA906
  • Usage- Polyethylene (PE) pipes for Firefighting Application
  • Size Range: 50mm to 315mm
  • Pressure Rating: PN16, PN20
  • Standard Dimensional Ratio: SDR11, SDR9
  • Available in 6Meter, 12Meter & Rolls with red stripe
Pressure-Pipes-and-Fittings

Pressure Pipes & Fittings

Download Catalogue

At Polyfab Plastic, we offer a wide range of PVC Pressure pipes, which are utilized in water supply, irrigation, industrial application and sewage rising mains. These pipes are unique as they are corrosion resistant, low cost, non toxic, with high flow capacity and excellent durability.

Duct-Pipes-and-Fittings

Duct Pipes & Fittings

Download Catalogue

At Polyfab Plastic, we offer PVC Duct Pipes for electrical cabling, ducting, encased ducting and direct burial, etc.

Drainage-Pipes-and-Fittings-Above-Ground

Drainage Pipes & Fittings (Above Ground)

Download Catalogue

At Polyfab Plastic, we supply Drainage Pipes & Fittings for Above the ground and Underground applications. These pipes are available in many sizes starting from 36mm to 160mm for waste, soil and vent systems; 110mm to 500mm for underground applications.

Drainage-Pipes-and-Fittings-Below-Ground

Drainage Pipes & Fittings (Below Ground)

Download Catalogue

At Polyfab Plastic, we supply Drainage Pipes & Fittings for Above the ground and Underground applications. These pipes are available in many sizes starting from 36mm to 160mm for waste, soil and vent systems; 110mm to 500mm for underground applications.

High-quality pipe accessories are essential for any type of piping system to function properly and withstand the tests of time and wear and tear. Our lineup of PVC pipe fittings are designed to meet this requirement and more.
